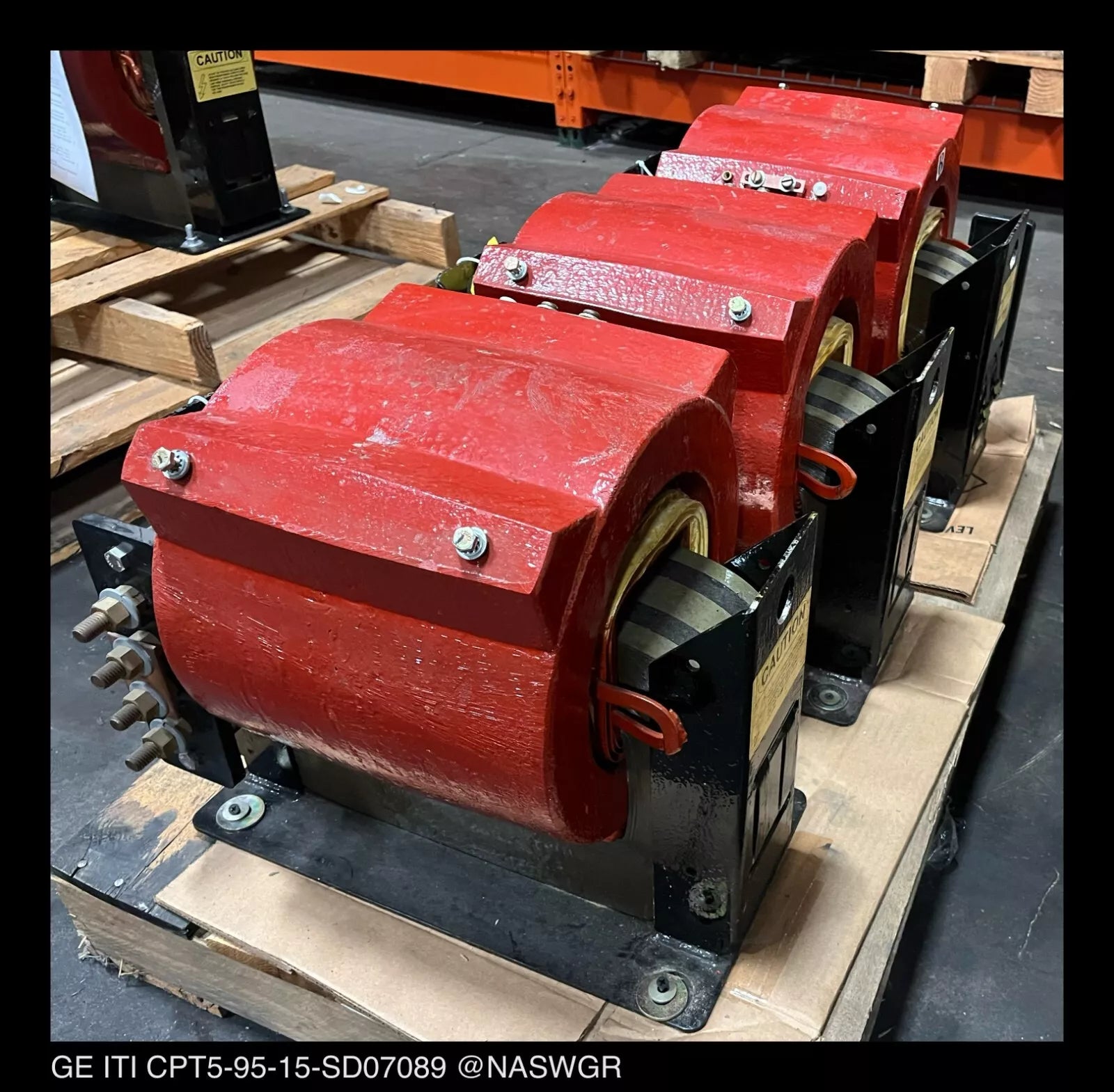

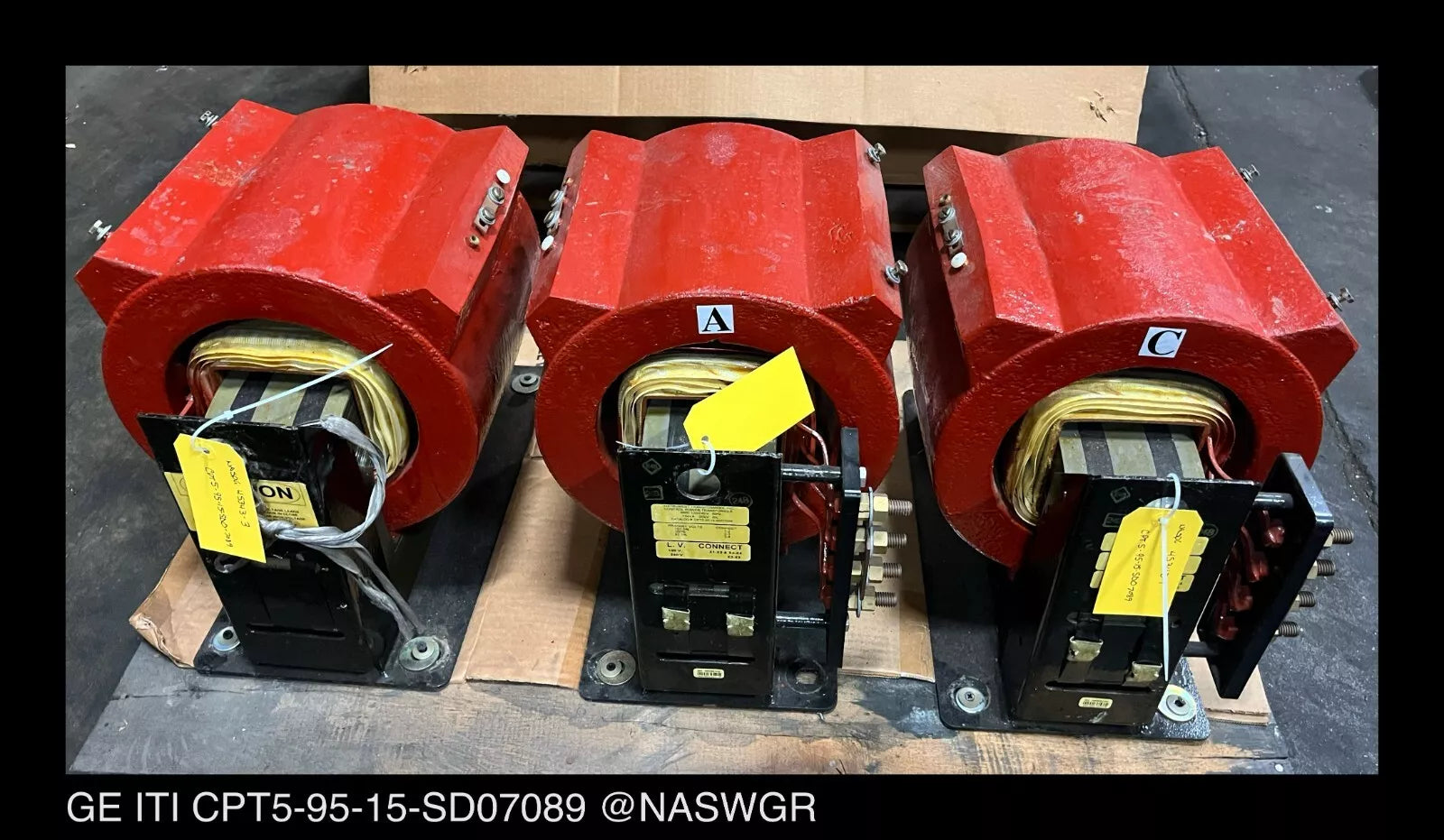

CPT5-95-15-SD07089

Instrument Transformers Inc. Control Power Transformer CPT
Shelf Surplus
95 kV BIL
15 kVA single-phase transformer
Primary voltage: 6600V
Secondary voltage: 120/240V
Frequency: 60 Hz
A Taps
15 kVA at 30°C ambient temperature
12.9 kVA at 55°C ambient temperature
Windings: encapsulated in epoxy resin
Mounting base: steel
Assembly: varnish coated
Available only as unfused
Self-cooled design
Indoor use
Approximate weight: 290 lbs

Primary terminals: brass screws (1/4-20) with one flat washer and one star washer

Secondary terminals: brass studs (1/2-13) with one flat washer, one lock washer, two nuts, and series/parallel links

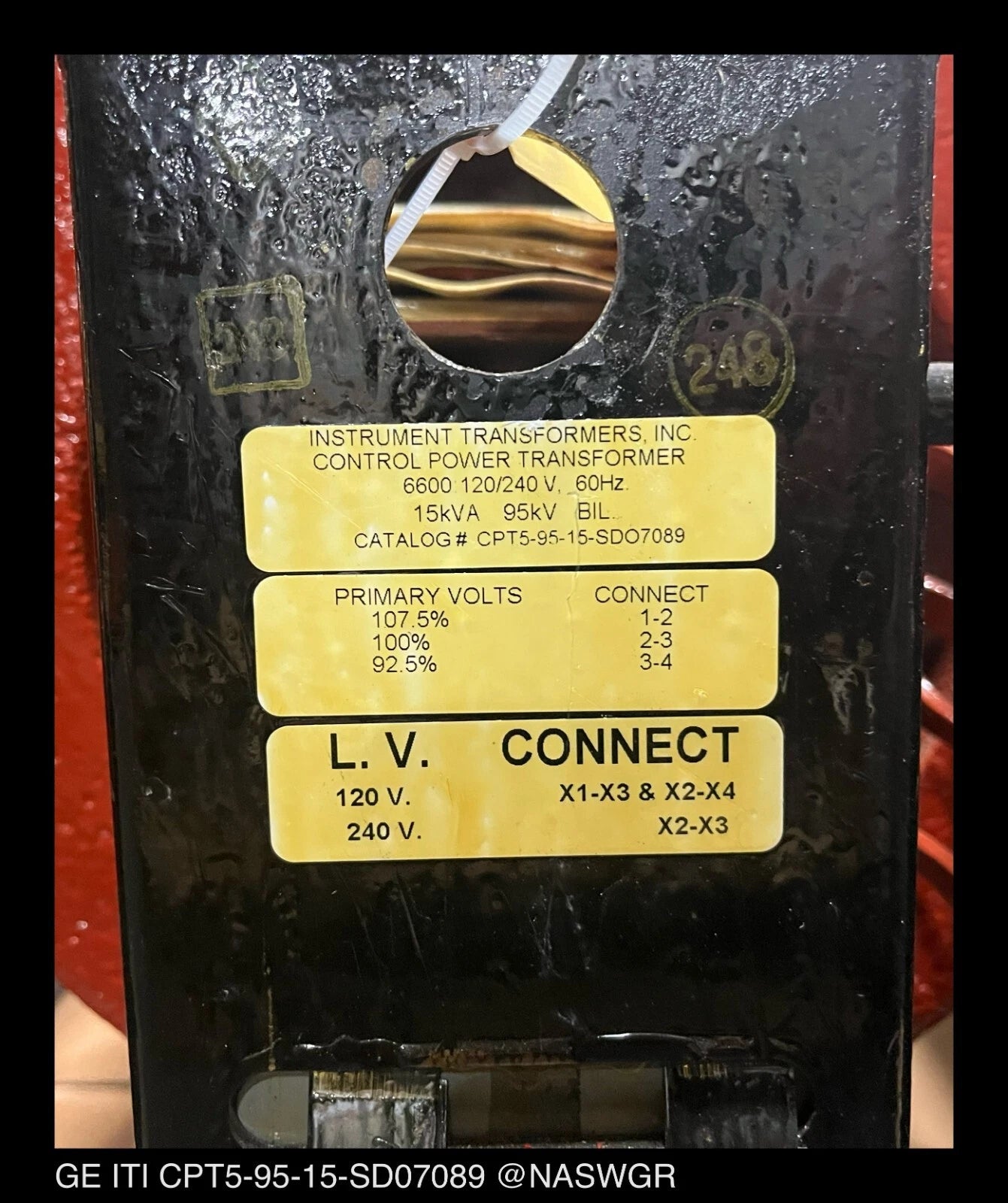

Taps: 1 ± 7 ½% or 2 ± 2 ½% above and below nominal voltage on the primary winding

Each Shelf Surplus CPT5-95-15-SD07089 is Inspected Prior to Shipping and Carries Our One Year Warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.

After hours emergency hotline 216-570-2725

NASPG45343 (3) Location: 801G, BLDG 6
