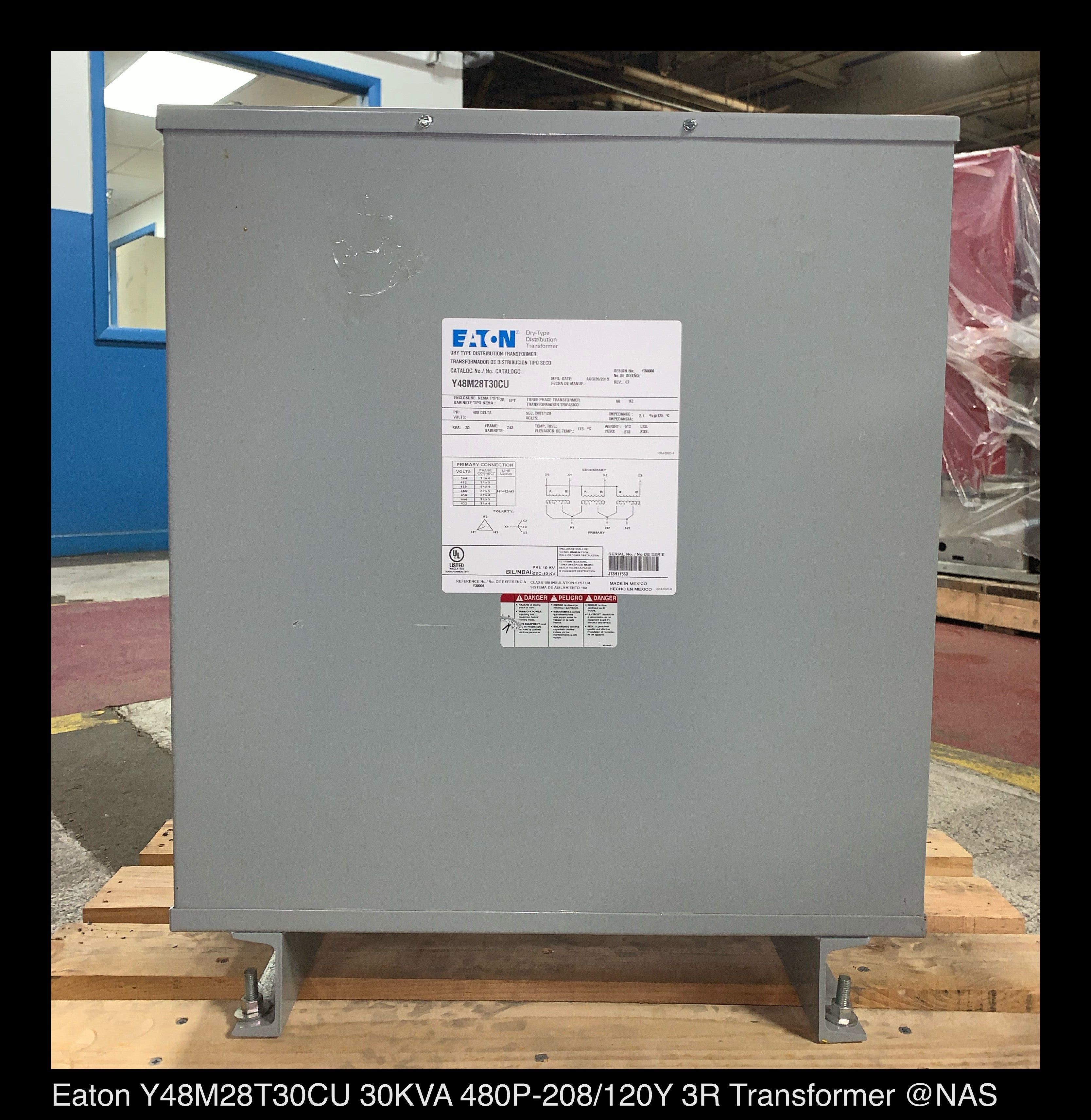

Y48M28T30CU

Eaton Dry Type General Purpose Transformer
Cat#: Y48M28T30CU
30 KVA Rating
Sand and And Resin Encapsulated
480 Volt Delta
208Y/120V Secondary
115 Degree C
Copper Windings
Impedance 2.1 %@135 C
Weight- 612 lbs. plus pallet
60HZ
3 Phase
Enclosure NEMA Type 3R EPT
Frame: 243
Tap Size: 2 at +2.5% FCAN, 4 at -2.5% FCBN
Wiring Connection: 84A

Dimensions: Height: 17.38 IN , Length: 10.52 IN , Width: 20 IN

Factory shelf surplus, tested prior to shipping and carries a 1 year warranty.

Call 800-909-3660 or email sales@naswgr.com with questions.
