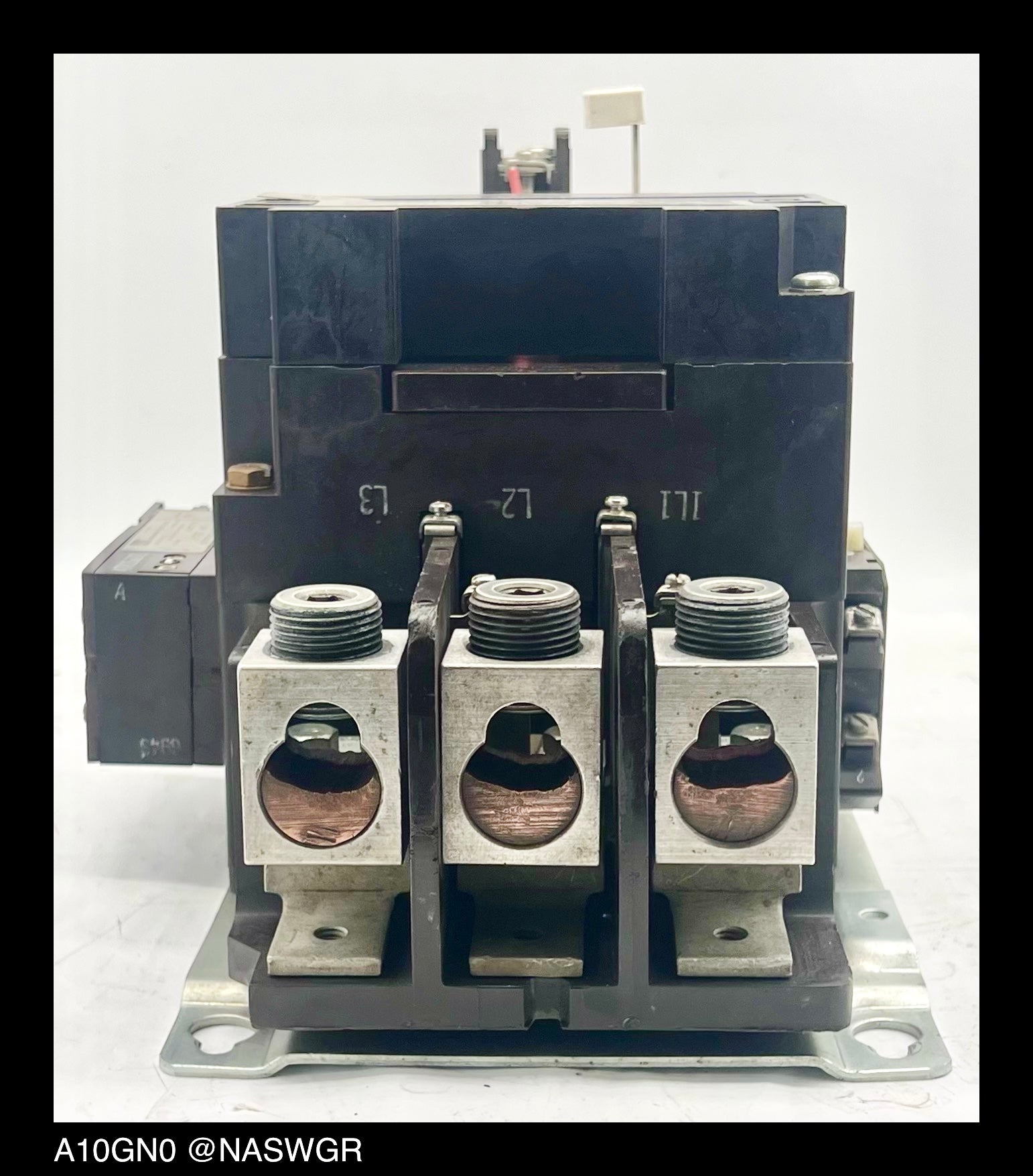

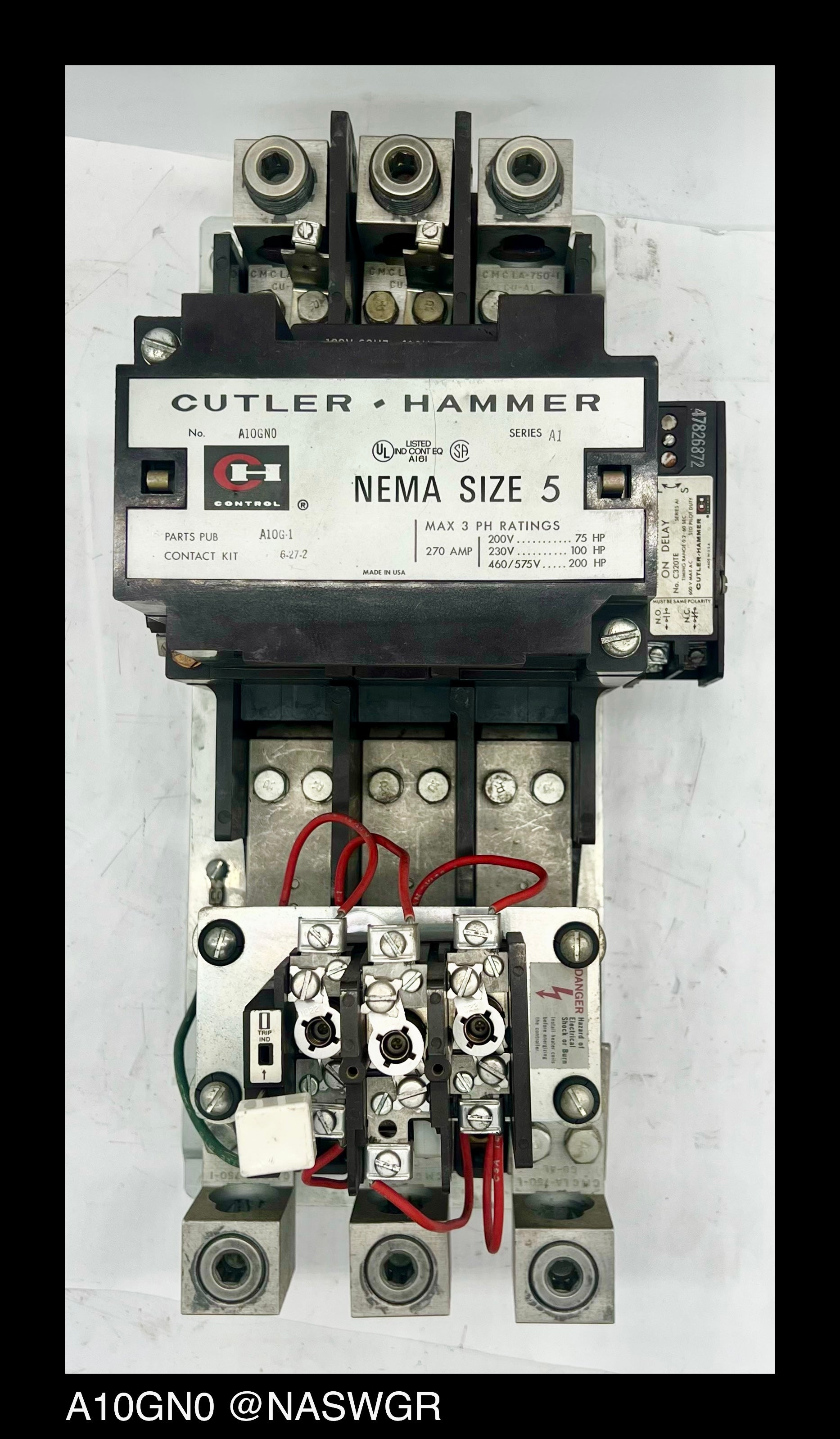

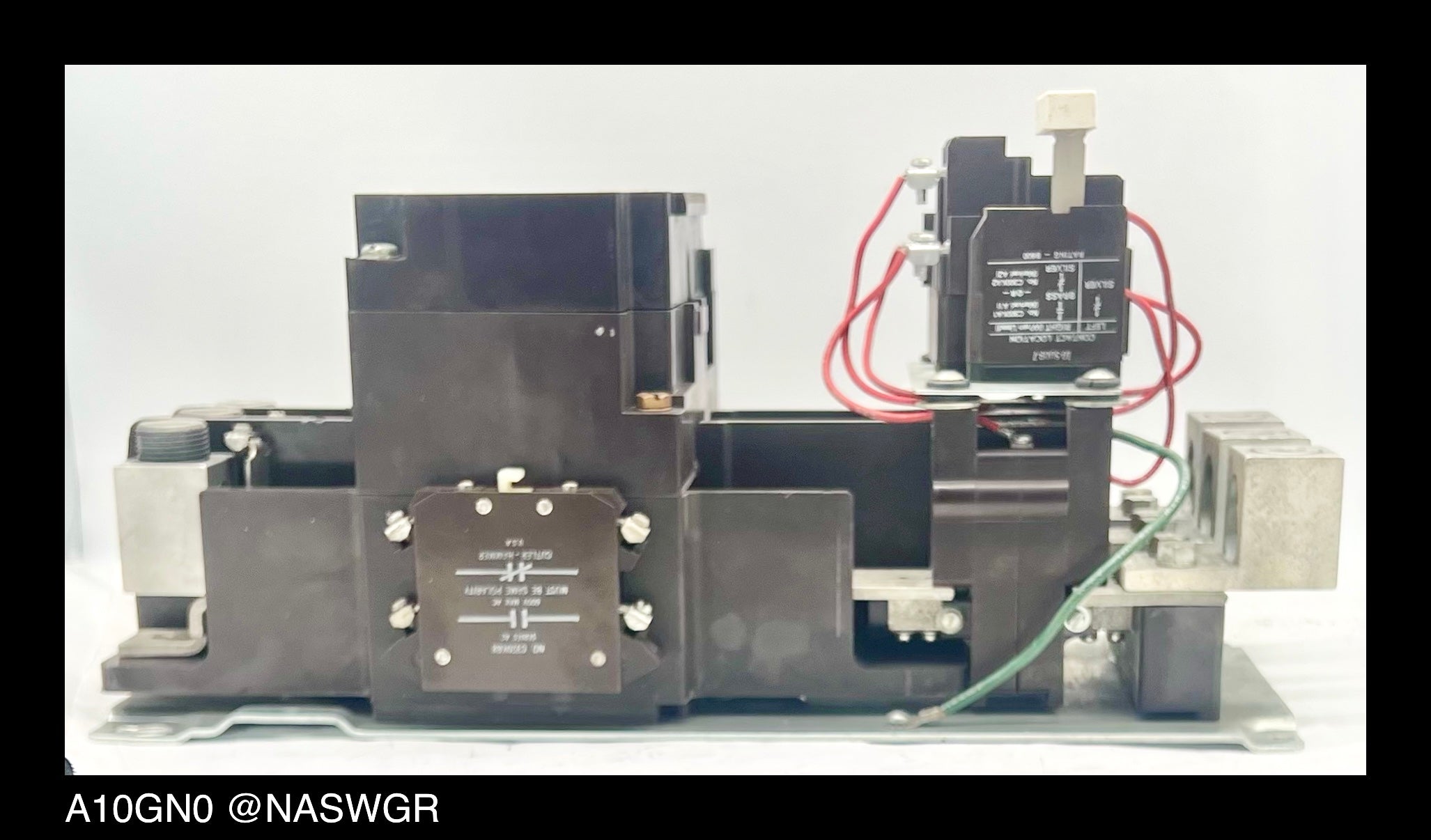

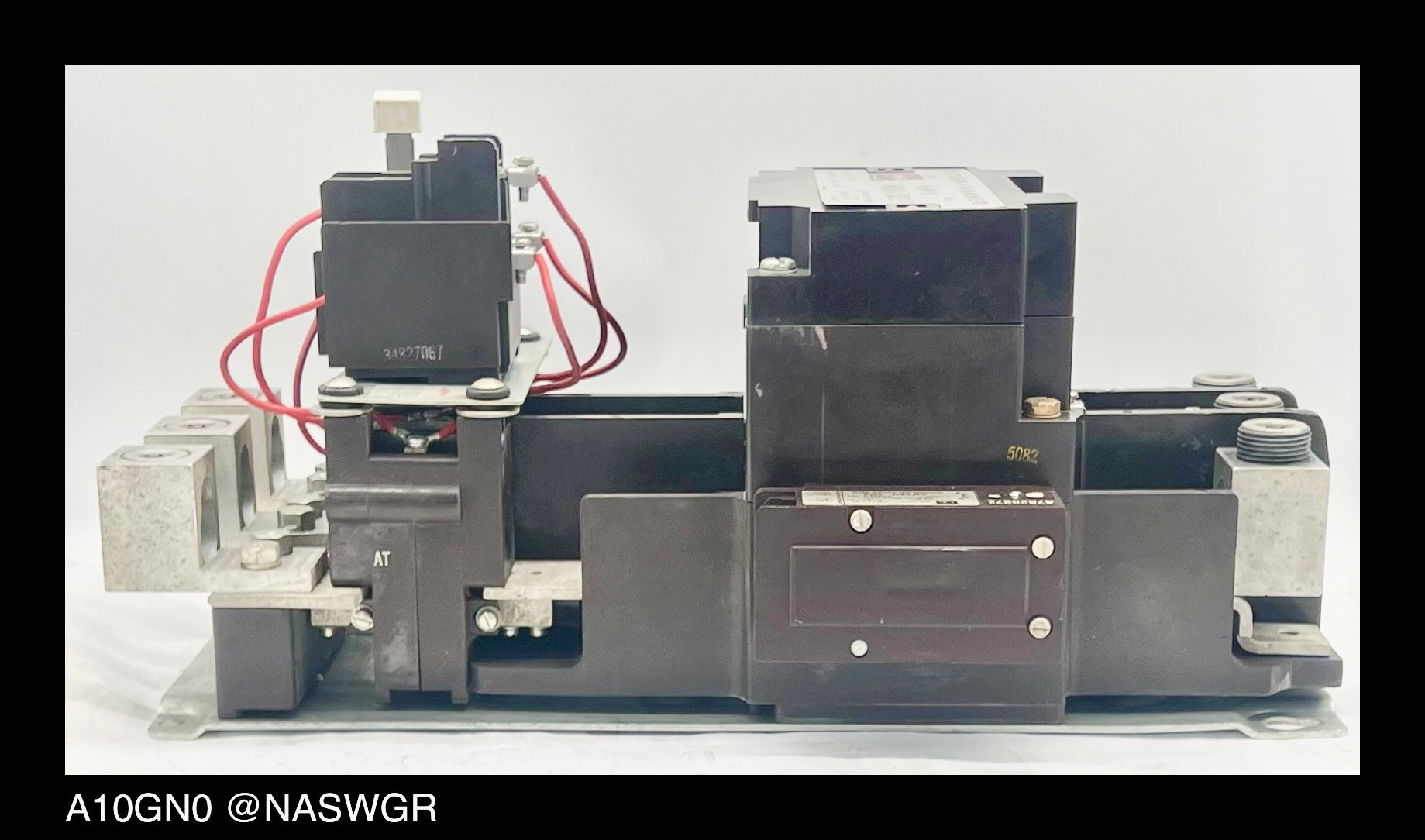

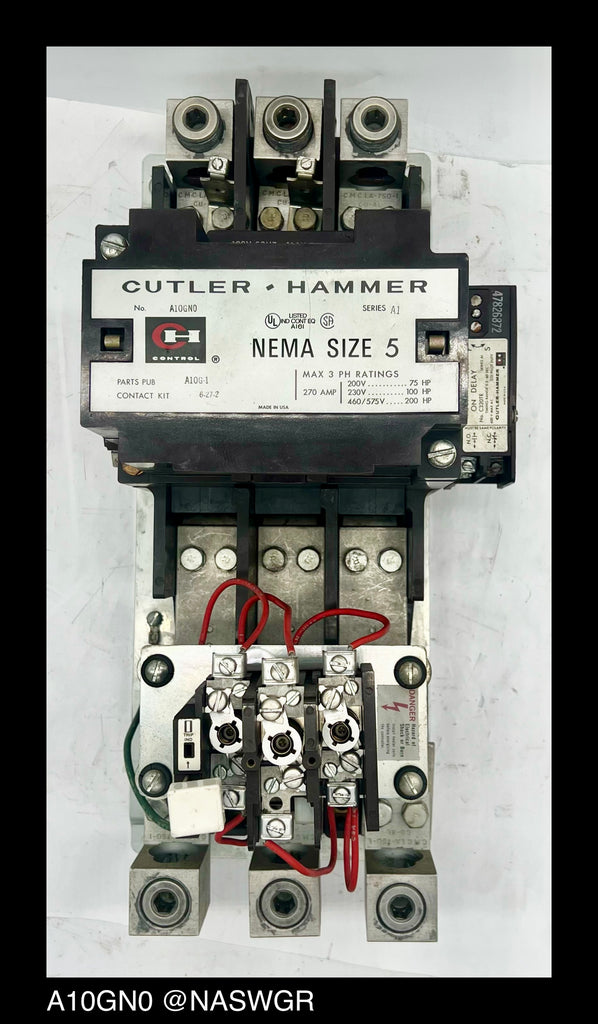

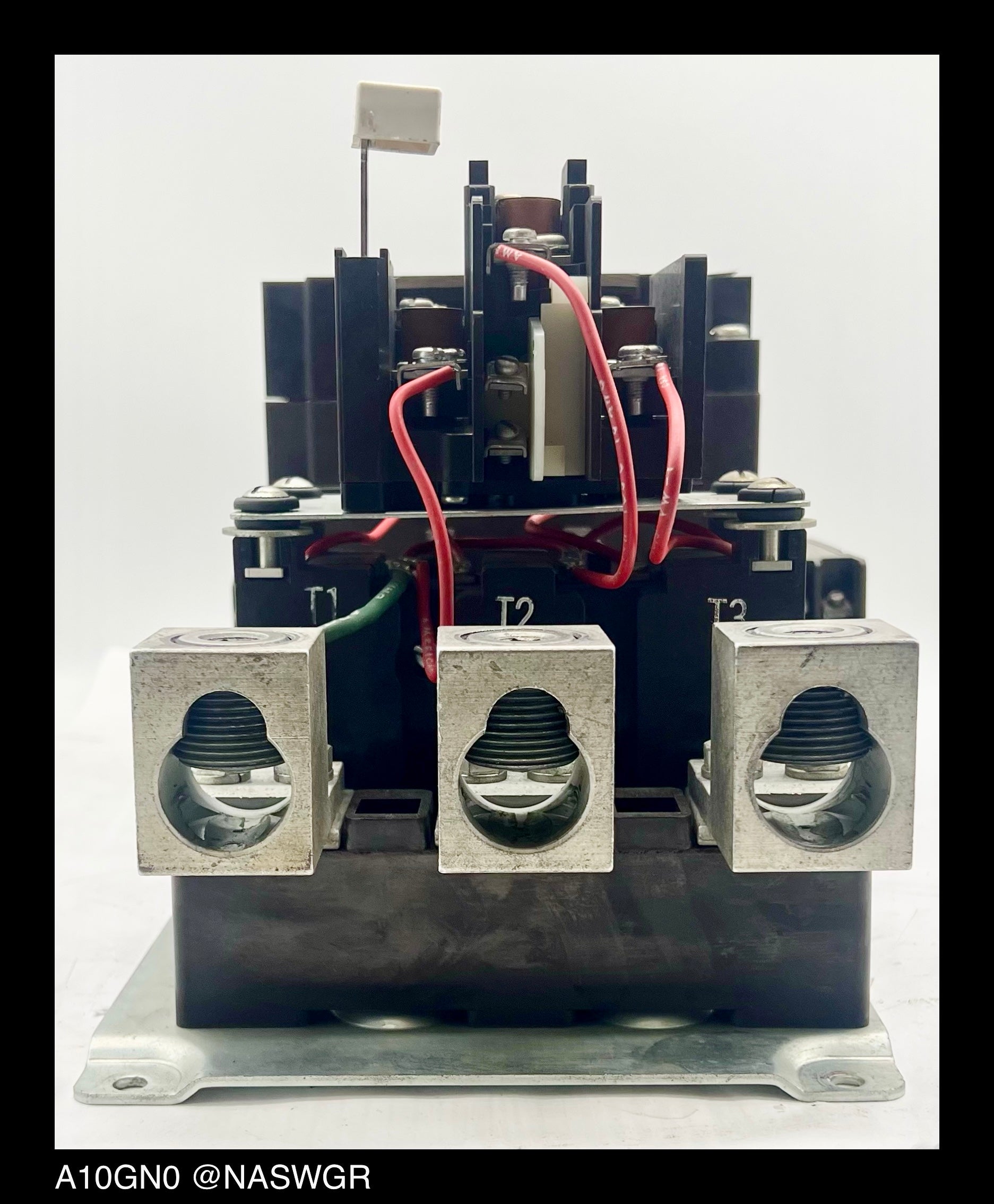

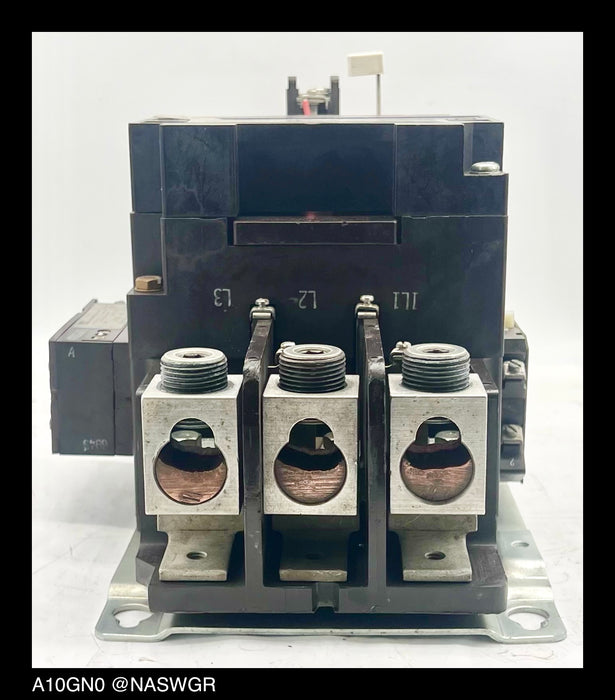

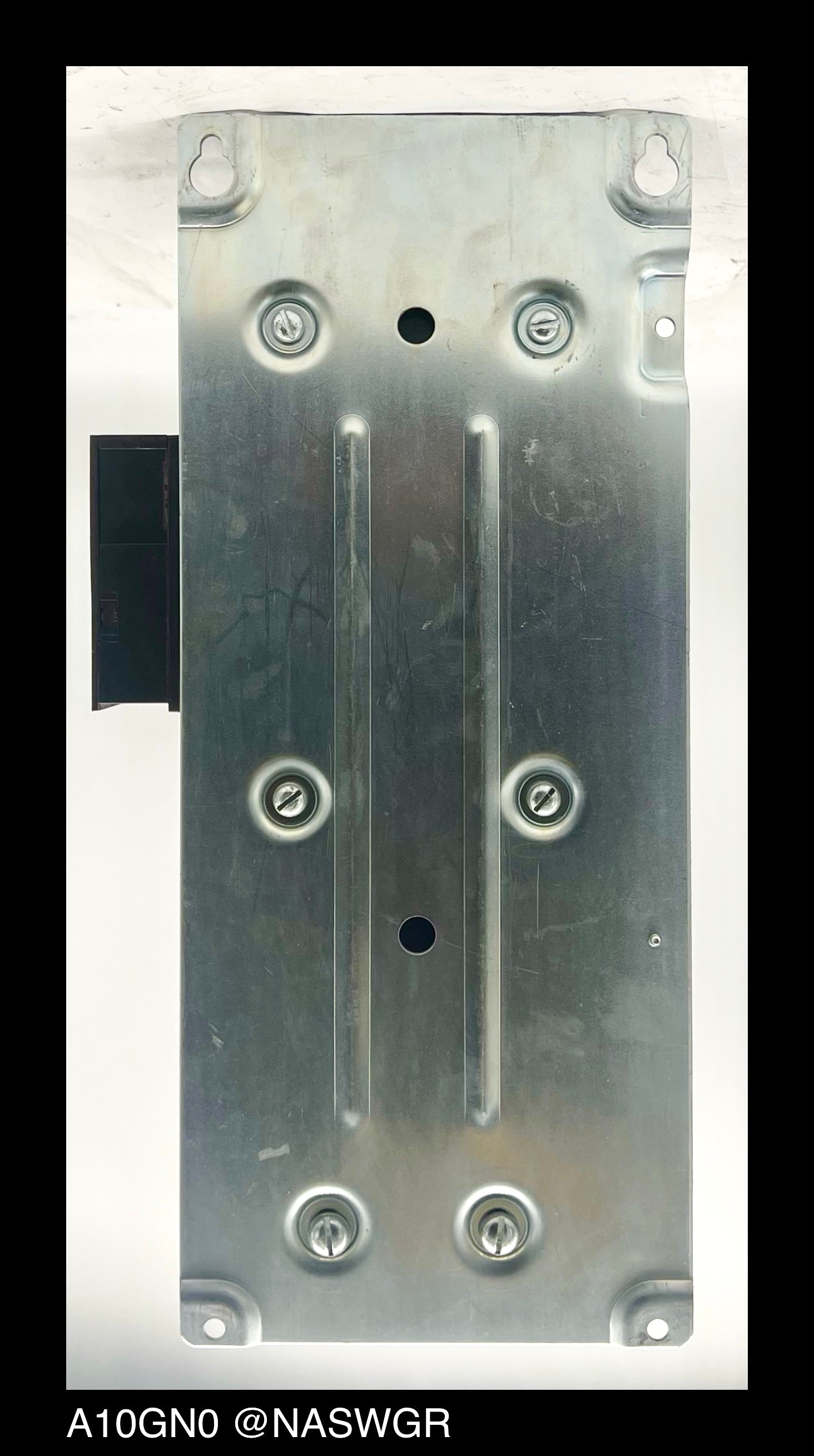

Cutler-Hammer A10GN0 Citation Starter - 270 A, 120v Coil
by Cutler Hammer
Contact for Quote: 800-909-3660 | sales@naswgr.com
A10GN0
Cutler Hammer Citation Starter
Open Style
Full Voltage, Non-Reversing
Series A1
Cat#: A10GN0
NEMA Size 5
270 Amp
Full Voltage, Non-Reversing
Series A1
Cat#: A10GN0
NEMA Size 5
270 Amp
600vAC
Max 3P Hp: 200Hp @ 460/575v
3-Pole Polyphase
Close Coil: 120v 60Hz, 110v 50Hz
Coil#: 1891-1
Max 3P Hp: 200Hp @ 460/575v
3-Pole Polyphase
Close Coil: 120v 60Hz, 110v 50Hz
Coil#: 1891-1
Standard Eutectic Trip Overload Relay
Auxiliary Contact
PN: C320KB8
Series: A2
Contact Voltage: 600V
Time Delay Interlock
PN: C320TE
Voltage: 600V
Time Range 0.2 - 60 Seconds
Auxiliary Contact
PN: C320KB8
Series: A2
Contact Voltage: 600V
Time Delay Interlock
PN: C320TE
Voltage: 600V
Time Range 0.2 - 60 Seconds
Each A10GN0 is Cleaned, Tested with Report, and Carries our One Year Warranty.
Call 800-909-3660 or email sales@naswgr.com with questions.
NASMC8731, NASMC8734 Location: 6514B
