GN08PD

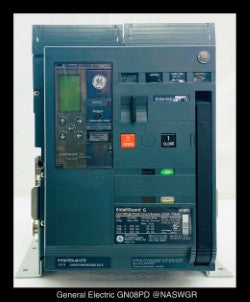

GE EntelliGuard G Low Voltage Circuit Breaker

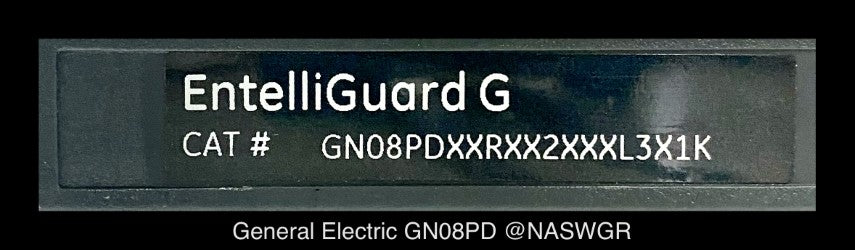

Cat#: GN08PDXXRXX2XXXL3X1O
EntelliGuard G Catalog Breakdown
G - EntelliGuard G Breaker
N - ANSI/UL1066 Circuit Breaker
08 - 800 Amp Current Sensors

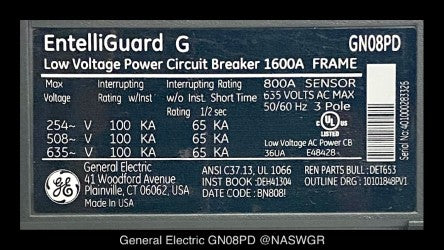

P - Interrupting Rating: 100kA @ 508v
D - 3 Pole / Drawout
X - No Motor Operator
X - No Close Coil
R - 120-127vAC, 110-125vDC Shunt Trip
X - No Undervoltage Release Device
X - No Second Shunt Trip
2 -  Aux. Switch, 3NO+3NC (Power Rated) Standard/Included
X - No Mechanical Operations Counter
X - No Key Interlock
X - No Mechanical Interlock

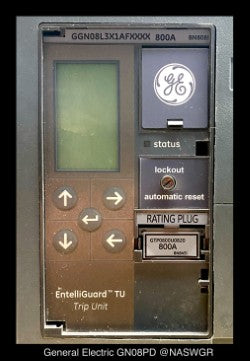

L3 - LSI (S, switchable) (I, switchable ANSI only)
X - No Zone Selective Interlock
1 - Reduced Energy Let-Through (RELT)

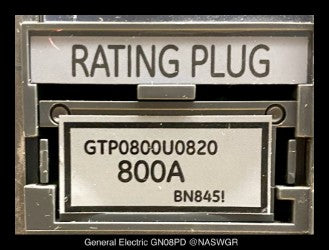

K (O) - 800 Amp Rating Plug

NAS can modify breaker to match your accessory needs. Message us your Catalog # to see if we can match your needs!

Each GN08PD is Cleaned, Tested with Report, and Carries our One Year Warranty.

Must ship via freight on a pallet. Please contact for freight quote.
